1241.3046.8 | SCHURTER
Piezo switch, On-Off, mounting Ø 16 mm, unlit, aluminum, IP67, 1241.3046.8
Unit Price (€ / pc.)
28.8575 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
28.86 € *
Price list
Quantity
Price per unit*
1 pcs.
28.8575 €
10 pcs.
26.8345 €
25 pcs.
24.9662 €
50 pcs.
22.9670 €
*incl. VAT plus shipping costs
Subject to prior sale

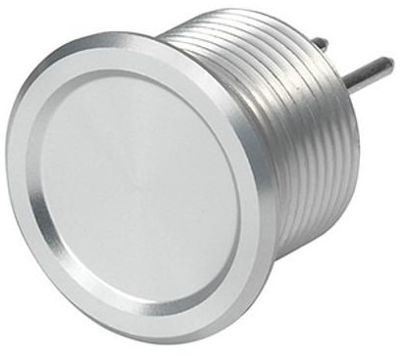

Piezo switch, 1241.3046.8, SCHURTER
The piezo switch has a longer switching signal duration with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It is easy to clean due to a tightly closed surface and can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | aluminum | |
| Switching Voltage (AC) | 32 V | |
| Connection | stranded wires | |
| Latching switching function | On-Off | |
| Actuator | round | |
| Degree of protection (IP) | IP67 | |
| Switching Voltage (DC) | 48 V | |

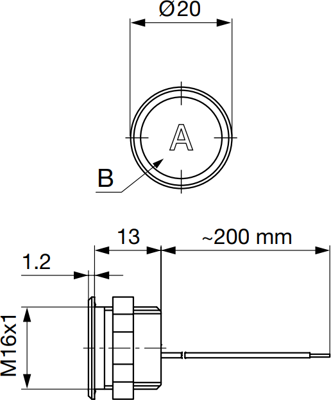

| Installation diameter | 16 mm | |
| illuminated | No | |
| switching current | 100 mA | |
| Color of body | silver |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 10 pieces |
| MSL | MSL 1 |
| Country of origin | CH |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
