1241.3012 | SCHURTER
Piezo switch, On-Off/Off-On, mounting Ø 30.3 mm, illuminable, red/green, aluminum, IP67, 1241.3012
Unit Price (€ / pc.)
65.1525 € *
Available: 17 pcs.
Leadtime: 10 Weeks **
Total Price:
65.15 € *
Price list
Quantity
Price per unit*
1 pcs.
65.1525 €
10 pcs.
63.1176 €
20 pcs.
59.0359 €
60 pcs.
57.0010 €
100 pcs.
52.9312 €
*incl. VAT plus shipping costs
**Subject to prior sale

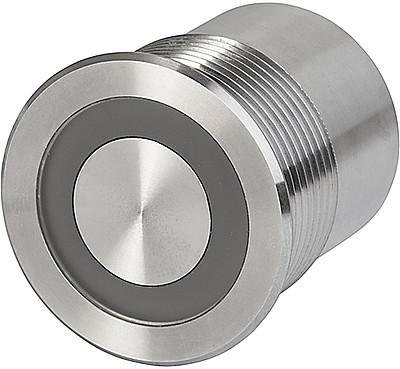

Piezo switch, 1241.3012, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Latching switching function | Ein-Aus/Aus-Ein | |

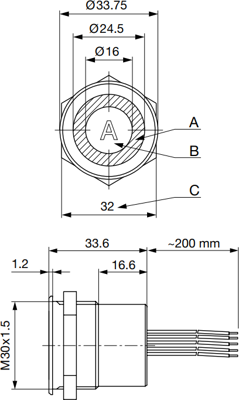

| Installation diameter | 30.3 mm | |
| can be illuminated | Yes | |
| Farbe der Beleuchtung | rot/grün | |
| Connection | Litzen | |
| Actuator | rund | |
| Shell Material | Aluminium | |
| Color of body | silber | |
| Degree of protection (IP) | IP67 | |
| Switching Voltage (DC) | 60 V | |
| Switching Voltage (AC) | 42 V | |
| switching current | 100 mA | |
| Lighting voltage | 5-28 VDC |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
