1241.3011 | SCHURTER

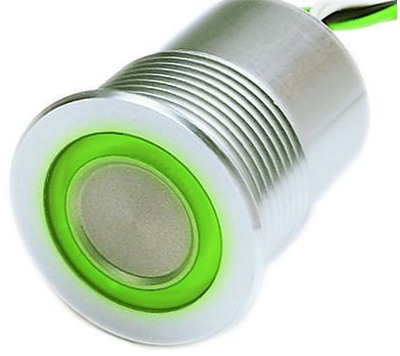

Piezo switch, On-Off, mounting Ø 27 mm, illuminated, red/green, aluminum, IP67, 1241.3011
Unit Price (€ / pc.)
   76.2671 €  *
   Available: 16 pcs.
 Total Price:
  76.27 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 76.2671 €
 10 pcs.
 67.1160 €
 20 pcs.
 65.2834 €
 40 pcs.
 63.4627 €
 160 pcs.
 59.7975 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Piezo switch, 1241.3011, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 42 V | |
| Switching Voltage (DC) | 60 V | |
| illuminated | Yes | |
| Connection | stranded wires | |
| Degree of protection (IP) | IP67 | |
| Shell Material | aluminum | |
| Color of body | silver | |
| Farbe der Beleuchtung | red/green | |
| Latching switching function | On-Off | |
| Actuator | round | |

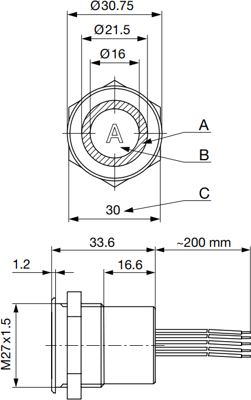

| Installation diameter | 27 mm | |
| switching current | 100 mA |
 Download
  Logistics

 | Property | Value |
|---|---|
| Original Packaging | Carton with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85365011 |
| Country of origin | CH |
 Compliance

 | Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
