1241.3010 | SCHURTER

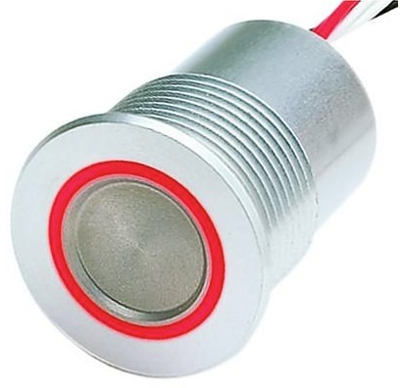

Piezo switch, On-Off, mounting Ø 24 mm, illuminated, red/green, aluminum, IP67, 1241.3010
Unit Price (€ / pc.)
63.2604 € *
Standard delivery time from the manufacturer is: 11 Weeks
Piezo switch, 1241.3010, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 24 mm | |
| Switching Voltage (DC) | 60 V | |
| Switching Voltage (AC) | 42 V | |
| Degree of protection (IP) | IP67 | |
| Color of body | silver | |
| Connection | stranded wires | |
| Farbe der Beleuchtung | red/green | |
| Actuator | round | |
| Shell Material | aluminum | |
| illuminated | Yes | |
| switching current | 100 mA | |
| Latching switching function | On-Off |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| MSL | MSL 1 |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
