1241.3007 | SCHURTER

Piezo switch, On-Off, mounting Ø 22 mm, unlit, aluminum, IP67, 1241.3007

Order No.: 59P4114
EAN: 4099889200560
MPN:
1241.3007
Series: PSE NO 22
1241.3007 SCHURTER Piezo Switches Image 1
1241.3007 SCHURTER Piezo Switches Image 2
Image may differ
Unit Price (€ / pc.)
19.4565 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
19.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
19.4565 €

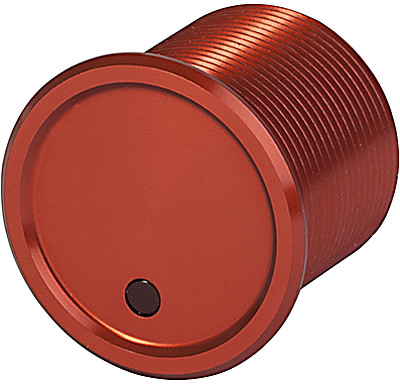

Piezo switch, 1241.3007, SCHURTER

Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.

Technical specifications
Filter Property Value
Switching Voltage (DC) 60 V
Color of body black
illuminated No
Latching switching function On-Off
switching current 100 mA
Shell Material aluminum
Installation diameter 22 mm
Switching Voltage (AC) 42 V
Connection solder pin
Degree of protection (IP) IP67
Logistics
Property Value
Customs tariff number 85365011
MSL MSL 1
Original Packaging Carton with 10 pieces
Country of origin CH
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
