1241.3005 | SCHURTER
Piezo switch, On-Off, mounting Ø 22 mm, unlit, aluminum, IP67, 1241.3005
Unit Price (€ / pc.)
19.4565 € *
Standard delivery time from the manufacturer is: 11 Weeks

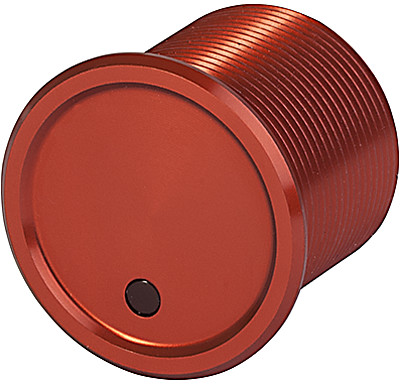

Piezo switch, 1241.3005, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Actuator | round | |
| Latching switching function | On-Off | |
| Switching Voltage (DC) | 60 V | |
| Installation diameter | 22 mm | |
| Degree of protection (IP) | IP67 | |
| Shell Material | aluminum | |
| Connection | PCB pin | |
| switching current | 100 mA | |
| Color of body | red | |
| Switching Voltage (AC) | 42 V | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
