1241.3004 | SCHURTER

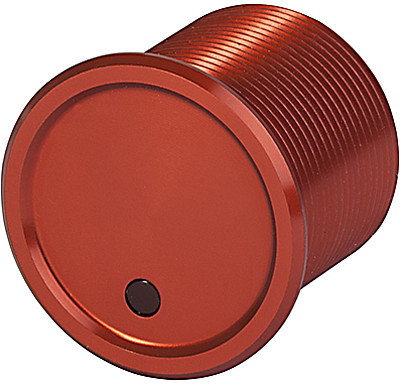

Piezo switch, On-Off, mounting Ø 22 mm, unlit, stainless steel, 1241.3004
Unit Price (€ / pc.)
28.1078 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
28.11 € *
Price list
Quantity
Price per unit*
1 pcs.
28.1078 €
10 pcs.
26.1324 €
25 pcs.
24.3117 €
50 pcs.
22.1221 €
*incl. VAT plus shipping costs
Subject to prior sale
Piezo switch, 1241.3004, SCHURTER
Piezo switch with stainless steel housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| switching current | 100 mA | |
| Latching switching function | On-Off | |
| Switching Voltage (AC) | 42 V | |
| Switching Voltage (DC) | 60 V | |
| Actuator | round | |
| Shell Material | stainless steel | |
| Connection | stranded wires | |

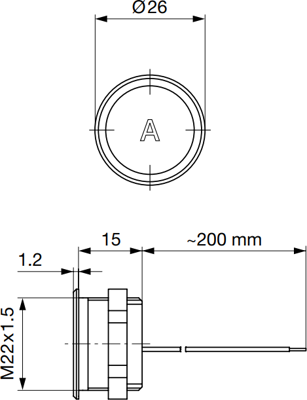

| Installation diameter | 22 mm | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
