1241.3003 | SCHURTER

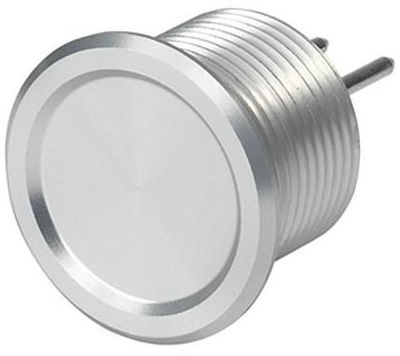

Piezo switch, On-Off, mounting Ø 16 mm, unlit, aluminum, IP69X, 1241.3003
Unit Price (€ / pc.)
25.7159 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
25.72 € *
Price list
Quantity
Price per unit*
1 pcs.
25.7159 €
10 pcs.
23.6572 €
25 pcs.
21.7651 €
50 pcs.
19.8135 €
*incl. VAT plus shipping costs
Subject to prior sale
Piezo switch, 1241.3003, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It is easy to clean due to a tightly closed surface and can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Color of body | natural | |
| Actuator | round | |
| Shell Material | aluminum | |
| Installation diameter | 16 mm | |
| Latching switching function | On-Off | |
| Degree of protection (IP) | IP69X | |
| illuminated | No | |
| Switching Voltage (DC) | 60 V | |
| switching current | 100 mA | |
| Connection | quick connection | |
| Switching Voltage (AC) | 42 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Country of origin | CH |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
