1241.3000 | SCHURTER
Piezo switch, On-Off, mounting Ø 16 mm, unlit, aluminum, IP67, 1241.3000
Unit Price (€ / pc.)
25.7278 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
25.73 € *
Price list
Quantity
Price per unit*
1 pcs.
25.7278 €
10 pcs.
23.6691 €
25 pcs.
21.7770 €
50 pcs.
19.8254 €
*incl. VAT plus shipping costs
Subject to prior sale

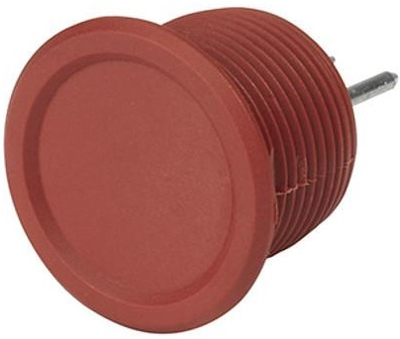

Piezo switch, 1241.3000, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It is easy to clean due to a tightly closed surface and can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | aluminum | |
| Switching Voltage (AC) | 42 V | |
| Connection | quick connection | |
| Latching switching function | On-Off | |
| Actuator | round | |
| Degree of protection (IP) | IP67 | |
| Switching Voltage (DC) | 60 V | |
| Installation diameter | 16 mm | |
| illuminated | No | |
| switching current | 100 mA | |
| Color of body | red |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 10 pieces |
| MSL | MSL 1 |
| Country of origin | CH |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
