1241.2611 | SCHURTER
Piezo switch, On-Off, mounting Ø 16 mm, unlit, stainless steel, IP69X, 1241.2611
Unit Price (€ / pc.)
27.4414 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
27.44 € *
Price list
Quantity
Price per unit*
1 pcs.
27.4414 €
10 pcs.
25.2399 €
25 pcs.
23.2288 €
50 pcs.
21.1344 €
*incl. VAT plus shipping costs
Subject to prior sale
Piezo switch, 1241.2611, SCHURTER

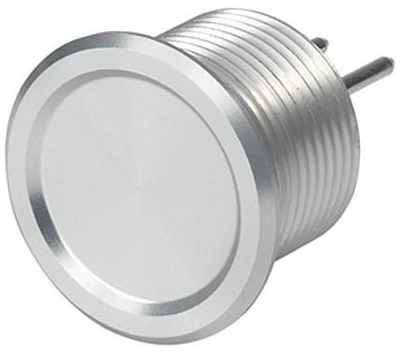

Piezo switch with stainless steel housing material, high reliability and long lifetime with more than 20 mill. actuations. It is easy to clean due to a tightly closed surface and can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 16 mm | |
| Switching Voltage (DC) | 60 V | |
| Switching Voltage (AC) | 42 V | |
| Degree of protection (IP) | IP69X | |
| Connection | solder pin | |
| Actuator | round | |
| Shell Material | stainless steel | |
| illuminated | No | |
| switching current | 100 mA | |
| Latching switching function | On-Off |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Carton with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
