1241.2411.5 | SCHURTER
Piezo switch, On-Off, mounting Ø 16.2 mm, unlit, aluminum, IP67, 1241.2411.5
Unit Price (€ / pc.)
23.6691 € *
Available: 10 pcs.
Total Price:
23.67 € *
Price list
Quantity
Price per unit*
1 pcs.
23.6691 €
10 pcs.
21.7770 €
25 pcs.
20.0396 €
50 pcs.
18.2308 €
*incl. VAT plus shipping costs
Subject to prior sale

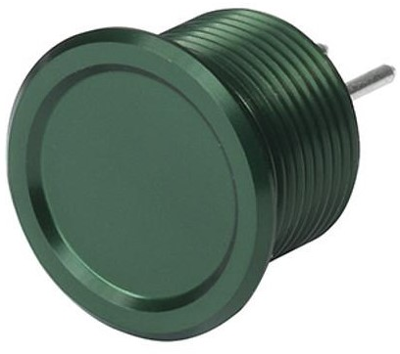

Piezo switch, 1241.2411.5, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It is easy to clean due to a tightly closed surface and can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | On-Off | |
| Installation diameter | 16.2 mm | |
| illuminated | No | |
| Connection | PCB connection | |
| Actuator | round | |
| Shell Material | aluminum | |
| Color of body | green | |
| Degree of protection (IP) | IP67 | |
| Switching Voltage (DC) | 42 V | |
| Switching Voltage (AC) | 42 V | |
| switching current | 100 mA |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85365011 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
