1241.2411.4 | SCHURTER
Piezo switch, On-Off, mounting Ø 16 mm, unlit, aluminum, IP69X, 1241.2411.4
Unit Price (€ / pc.)
23.6691 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
23.67 € *
Price list
Quantity
Price per unit*
1 pcs.
23.6691 €
10 pcs.
21.7770 €
25 pcs.
20.0396 €
50 pcs.
18.2308 €
*incl. VAT plus shipping costs
Subject to prior sale

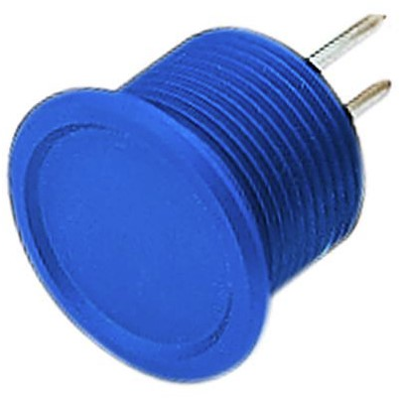

Piezo switch, 1241.2411.4, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It is easy to clean due to a tightly closed surface and can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 60 V | |
| Color of body | blue | |
| illuminated | No | |
| Latching switching function | On-Off | |
| switching current | 100 mA | |
| Shell Material | aluminum | |
| Installation diameter | 16 mm | |
| Switching Voltage (AC) | 42 V | |
| Connection | solder pin | |
| Degree of protection (IP) | IP69X | |
| Actuator | round |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
