0090.1025 | SCHURTER

Fuse 10.3 x 38 mm, 25 A, gPV, 1 kV (DC), 20 kA breaking capacity, 0090.1025

Order No.: 59P2428
EAN: 4099889125726
MPN:
0090.1025
Series: ASO 10.3x38
0090.1025 SCHURTER Photovoltaic Fuses

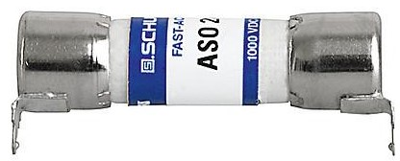

Image may differ
Unit Price (€ / pc.)
10.5672 € *
Standard delivery time from the manufacturer is: 48 Weeks
Total Price:
10.57 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5672 €
10 pcs.
9.6152 €
50 pcs.
8.6632 €
100 pcs.
7.7945 €
*incl. VAT plus shipping costs
Subject to prior sale

Midget fuse, 0090.1025, SCHURTER

This midget fuse meets the new UL and IEC photovoltaic standards, it contains high breaking capacity of 20 kA @ 1000 VDC with low minimum interrupting rating of 1.35 x In. The midget fuse meets the requirements of IEC 61730-2 for PV module safety and it is UL recognized for 1000 VDC.

Applications

  • Photovoltaic applications
  • Inverters
  • Battery charge controllers
  • In-line protection
  • String fuses
Technical specifications
Version radial
Design 10.3 x 38 mm
Tripping characteristics gPV
Rated current 25 A
Breaking capacity 20 kA
Rated voltage (DC) 1 kV
Logistics
Country of origin MX
Customs tariff number 85361050
MSL MSL 1
Original Packaging Carton with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
