0090.1004 | SCHURTER

Fuse 10.3 x 38 mm, 4 A, gPV, 1 kV (DC), 20 kA breaking capacity, 0090.1004

Order No.: 59P2421
EAN: 4099889125658
MPN:
0090.1004
Series: ASO 10.3x38

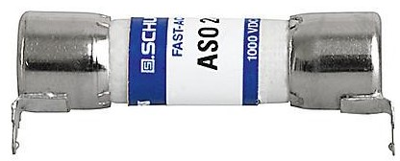

0090.1004 SCHURTER Photovoltaic Fuses
Image may differ
Unit Price (€ / pc.)
10.5672 € *
Standard delivery time from the manufacturer is: 48 Weeks
Total Price:
10.57 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5672 €
10 pcs.
9.6152 €
50 pcs.
8.6632 €
100 pcs.
7.7945 €
*incl. VAT plus shipping costs
Subject to prior sale

Midget fuse, 0090.1004, SCHURTER

This midget fuse meets the new UL and IEC photovoltaic standards, it contains high breaking capacity of 20 kA @ 1000 VDC with low minimum interrupting rating of 1.35 x In. The midget fuse meets the requirements of IEC 61730-2 for PV module safety and it is UL recognized for 1000 VDC.

Applications

  • Photovoltaic applications
  • Inverters
  • Battery charge controllers
  • In-line protection
  • String fuses
Technical specifications
Version radial
Design 10.3 x 38 mm
Tripping characteristics gPV
Rated current 4 A
Breaking capacity 20 kA
Rated voltage (DC) 1 kV
Logistics
Country of origin MX
Customs tariff number 85361010
MSL MSL 1
Original Packaging Carton with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
