0090.0015 | SCHURTER

Fuse 10.3 x 38 mm, 15 A, gPV, 1 kV (DC), 20 kA breaking capacity, 0090.0015

Order No.: 42G8910
EAN: 4099889125474
MPN:
0090.0015
Series: ASO 10.3x38
0090.0015 SCHURTER Photovoltaic Fuses

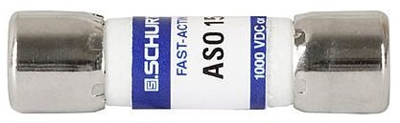

Image may differ
Unit Price (€ / pc.)
8.0325 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
8.03 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0325 €
10 pcs.
7.3066 €
50 pcs.
6.7235 €
100 pcs.
6.0571 €
*incl. VAT plus shipping costs
Subject to prior sale

Midget fuse, 0090.0015, SCHURTER

This midget fuse meets the new UL and IEC photovoltaic standards, it contains high breaking capacity of 20 kA @ 1000 VDC with low minimum interrupting rating of 1.35 x In. The midget fuse meets the requirements of IEC 61730-2 for PV module safety and it is UL recognized for 1000 VDC.

Applications

  • Photovoltaic applications
  • Inverters
  • Battery charge controllers
  • In-line protection
  • String fuses
Technical specifications
Version radial
Design 10.3 x 38 mm
Tripping characteristics gPV
Rated current 15 A
Breaking capacity 20 kA
Rated voltage (DC) 1 kV
Logistics
Country of origin MX
Original Packaging Carton with 10 pieces
Customs tariff number 85361010
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
