8020.0607.G | SCHURTER
Microfuse 6.3 x 32 mm, 30 A, T, 250 V (AC), 500 A breaking capacity, 8020.0607.G
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: 19 Weeks

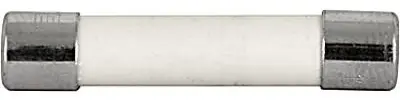

Micro fuse, 8020.0607.G, SCHURTER
The 8020.0607.G is a time-lag cartridge fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material ceramic tube
- Material endcaps brass nickel-plated
- Material filler sand
- Low resistance
Applications
- Single-phase high current applications up to 30 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 6.35 mm | |
| Rated voltage (AC) | 250 V | |
| Length | 31.8 mm | |
| Tripping characteristics | T | |
| Breaking capacity | 500 A | |
| Design | 6.3 x 32 mm | |
| Enclosure | ceramic tube | |
| Version | microfuse | |
| Rated current | 30 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 1,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85361050 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
