7022.0510 | SCHURTER
Microfuse 6.3 x 32 mm, 125 mA, FF, 500 V (AC), 150 kA breaking capacity, 7022.0510
Unit Price (€ / pc.)
1.2138 € *
Standard delivery time from the manufacturer is: 10 Weeks

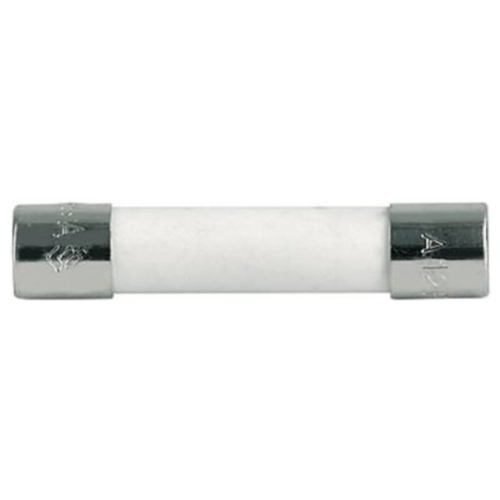

Micro fuse, 7022.0510, SCHURTER
The 7022.0510 is a super quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material ceramic tube
- Suitable for mounting in fuseholder / clip
- High breaking capacity
Applications
- Semiconductor protection
- Test equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 125 mA | |
| Design | 6.3 x 32 mm | |
| Version | microfuse | |
| Rated voltage (AC) | 500 V | |
| Enclosure | ceramic tube | |
| Tripping characteristics | FF | |
| diameter | 6.35 mm | |
| Breaking capacity | 150 kA | |
| Length | 31.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
