7010.9880.57 | SCHURTER
Microfuse 7 x 2 mm, 5 A, F, 125 V (DC), 125 V (AC), 300 A breaking capacity, 7010.9880.57
Unit Price (€ / pc.)
0.4403 € *
Standard delivery time from the manufacturer is: 17 Weeks

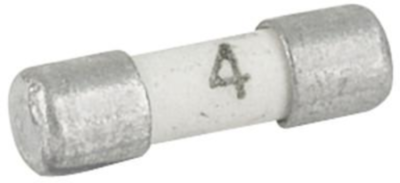

Micro fuse, 7010.9880.57, SCHURTER
The 7010.9880.57 is a SMT quick-acting fuse designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material ceramic tube
- Material endcaps copper alloy tin-plated
- Suitable for reflow and wave soldering
- High breaking capacity
Applications
- Directly solderable on printed circuit boards
- Telecom
- Household appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Design | 7 x 2 mm | |
| Breaking capacity | 300 A | |
| Version | microfuse | |
| Rated voltage (AC) | 125 V | |
| Rated current | 5 A | |
| Length | 7 mm | |
| diameter | 2 mm | |
| Enclosure | ceramic tube | |
| Rated voltage (DC) | 125 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
