3422.0048.23 | SCHURTER
SMD fuse 12 x 5.2 mm, 3.15 A, F, 63 V (DC), 63 V (AC), 50 A breaking capacity, 3422.0048.23
Unit Price (€ / pc.)
1.7255 € *
Standard delivery time from the manufacturer is: 7 Weeks
SMD-Fuse, 3422.0048.23, SCHURTER

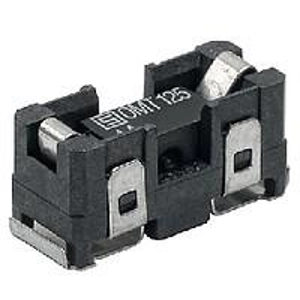

The 3422.0048.23 is a SMT fast-acting fuse with holder that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material housing thermoplastic
- Material terminals copper tin-plated
- Suitable for reflow soldering
- Directly solderable on printed circuit boards
Applications
- PCBs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Design | 12 x 5.2 mm | |
| Breaking capacity | 50 A | |
| Version | SMD fuse | |
| Rated voltage (AC) | 63 V | |
| Height | 6 mm | |
| Rated current | 3.15 A | |
| Width | 5.2 mm | |
| Length | 12 mm | |
| Enclosure | SMD | |
| Rated voltage (DC) | 63 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
| Original Packaging | Blister with 1,500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
