3413.0215.22 | SCHURTER

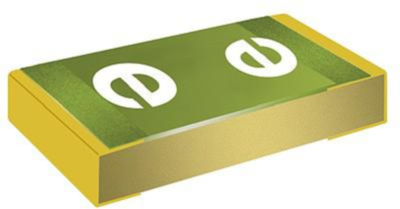

SMD fuse 3.2 x 1.6 mm, 800 mA, F, 63 V (DC), 32 V (AC), 63 A breaking capacity, 3413.0215.22
Unit Price (€ / pc.)
0.6069 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
0.61 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6069 €
10 pcs.
0.5355 €
50 pcs.
0.4879 €
100 pcs.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD-Fuse, 3413.0215.22, SCHURTER
The 3413.0215.22 is a SMT quick-acting fuse designed to protect less sensitive components and are also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material housing epoxyd glass
- Material terminals copper Ni/Au-plated
- Suitable for reflow and wave soldering
- Low melting I²t-values, fast interruption
Applications
- Secondary protection DC and AC
- Circuits with inrush
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 63 V | |
| Enclosure | SMD 1206 | |
| Breaking capacity | 63 A | |
| Rated voltage (AC) | 32 V | |
| Design | 3.2 x 1.6 mm | |
| Width | 1.6 mm | |
| Height | 0.6 mm | |
| Tripping characteristics | F | |
| Version | SMD fuse | |
| Length | 3.2 mm | |
| Rated current | 800 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | CH |
| MSL | MSL 1 |
| Original Packaging | Blister with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
