3410.0027.01 | SCHURTER
SMD fuse SMD 1206, 500 mA, FF, 125 V (DC), 125 V (AC), 50 A breaking capacity, 3410.0027.01
Unit Price (€ / pc.)
2.6061 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
2.61 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6061 €
10 pcs.
2.3443 €
50 pcs.
2.1182 €
100 pcs.
1.8921 €
*incl. VAT plus shipping costs
Subject to prior sale

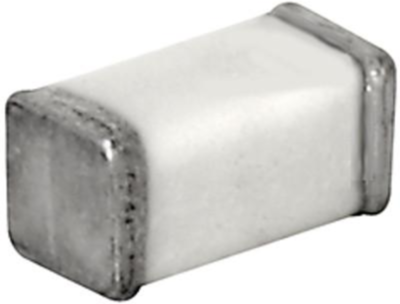

SMD-Fuse, 3410.0027.01, SCHURTER
The 3410.0027.01 is a SMD super quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material glass tube
- Material terminals nickel tin-plated
- Hermetically sealed and robust construction
- High breaking capacity up to 300 A
Applications
- Applications where high reliability and availability is needed
- Medical equipment
- Offshore
- Defense
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 125 V | |
| Enclosure | SMD | |
| Breaking capacity | 50 A | |
| Rated voltage (AC) | 125 V | |
| Design | SMD 1206 | |
| Width | 1.55 mm | |
| Height | 1.55 mm | |
| Tripping characteristics | FF | |
| Version | SMD fuse | |
| Length | 3.2 mm | |
| Rated current | 500 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | CH |
| MSL | MSL 1 |
| Original Packaging | Blister with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
