3405.0164.24 | SCHURTER

SMD fuse 3 x 10.1 mm, 630 mA, F, 125 V (DC), 250 V (AC), 100 A breaking capacity, 3405.0164.24

Order No.: 59P5001
EAN: 4099889110517
MPN:
3405.0164.24
Series: UMF 250
3405.0164.24 SCHURTER Micro Fuses

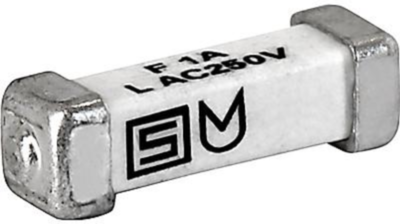

Image may differ
Unit Price (€ / pc.)
0.4284 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,713.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.4284 €

SMD-Fuse, 3405.0164.24, SCHURTER

The 3405.0164.24 is a quick-acting fuse designed to protect less sensitive components and are also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • Material glass tube
  • Material terminals copper alloy gold-plated
  • Directly solderable on printed circuit boards
  • UMF (universal modular fuse)

Applications

  • Primary protection on SMD PCB-s
  • Medical equipment
  • Power supplies
  • Illumination
Technical specifications
Design 3 x 10.1 mm
Version SMD fuse
Enclosure SMD
Rated current 630 mA
Tripping characteristics F
Rated voltage (DC) 125 V
Height 3 mm
Length 10.1 mm
Rated voltage (AC) 250 V
Breaking capacity 100 A
Width 3 mm
Logistics
Original Packaging Blister with 2,000 pieces
Customs tariff number 85361010
Country of origin CH
MSL MSL 1
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
