3404.2471.11 | SCHURTER

SMD fuse 4.2 x 11.3 mm, 3.15 A, F, 250 V (DC), 125 V (AC), 200 A breaking capacity, 3404.2471.11

Order No.: 59P4995
EAN: 4099889110456
MPN:
3404.2471.11
Series: UMK 250

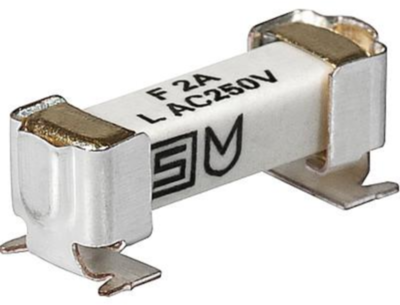

3404.2471.11 SCHURTER Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.7378 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
0.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.7378 €

SMD-Fuse, 3404.2471.11, SCHURTER

The 3404.2471.11 is a quick-acting fuse with a holder that integrates fuses safely in electrical circuits, ensure a robust current path (voltage does not creep to other components) and provide a method to replace fuses once they manage overcurrent events as intended.

Features

  • Material glass tube
  • Material terminals copper alloy gold-plated
  • Suitable for reflow soldering
  • High breaking capacity of 200 A

Applications

  • Primary protection on SMD PCB-s
Technical specifications
Design 4.2 x 11.3 mm
Version SMD fuse
Enclosure SMD
Rated current 3.15 A
Tripping characteristics F
Rated voltage (DC) 250 V
Height 4 mm
Length 11.3 mm
Rated voltage (AC) 125 V
Breaking capacity 200 A
Width 4.2 mm
Logistics
Original Packaging Blister with 100 pieces
Customs tariff number 85363010
Country of origin CH
MSL MSL 1
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
