3404.2324.23 | SCHURTER
SMD fuse 12 x 5.2 mm, 1 A, T, 125 V (DC), 125 V (AC), 100 A breaking capacity, 3404.2324.23
Unit Price (€ / pc.)
1.7255 € *
Standard delivery time from the manufacturer is: 7 Weeks

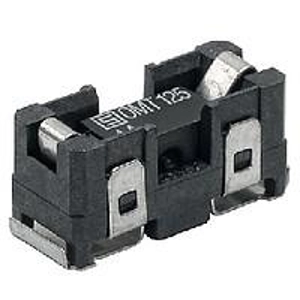

SMD-Fuse, 3404.2324.23, SCHURTER
The 3404.2324.23 is a time-lag fuse with a holder that integrates fuses safely in electrical circuits, ensure a robust current path (voltage does not creep to other components) and provide a method to replace fuses once they manage overcurrent events as intended.
Features
- Material housing thermoplastic
- Material terminals copper tin-plated
- Suitable for reflow soldering
- Heat resistant
Applications
- Primary protection on SMD PCB-s
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | T | |
| Design | 12 x 5.2 mm | |
| Breaking capacity | 100 A | |
| Version | SMD fuse | |
| Rated voltage (AC) | 125 V | |
| Height | 6 mm | |
| Rated current | 1 A | |
| Width | 5.2 mm | |
| Length | 12 mm | |
| Enclosure | SMD | |
| Rated voltage (DC) | 125 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
| Original Packaging | Blister with 1,500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
