3404.0118.11 | SCHURTER

SMD fuse 7.4 x 3.1 mm, 3 A, T, 125 V (DC), 125 V (AC), 100 A breaking capacity, 3404.0118.11

Order No.: 50G342
EAN: 4099889093636
MPN:
3404.0118.11
Series: OMT 125

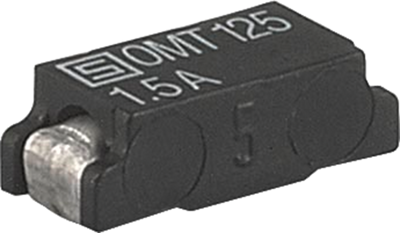

3404.0118.11 SCHURTER Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.4046 € *
Available: 300 pcs.
Total Price:
0.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.4046 €

SMD-Fuse, 3404.0118.11,SCHURTER

The 3404.0118.11 is a time-lag surface mount fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.

Features

  • Material thermoplastic
  • Material terminals copper alloy tin-plated
  • High breaking capacity
  • PCB or SMT mountable
Technical specifications
Filter Property Value
Height 2.6 mm
Version SMD fuse
Tripping characteristics T
Rated voltage (DC) 125 V
Width 3.1 mm
Enclosure SMD
Rated current 3 A
Rated voltage (AC) 125 V
Breaking capacity 100 A
Design 7.4 x 3.1 mm
Length 7.4 mm
Logistics
Property Value
Original Packaging Reel with 100 pieces
Country of origin CH
Customs tariff number 85361010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
