3403.0269.23 | SCHURTER

SMD fuse 5.3 x 16 mm, 315 mA, T, 250 V (DC), 277 V (AC), 1.5 kA breaking capacity, 3403.0269.23

Order No.: 59P4805
EAN: 4099889108583
MPN:
3403.0269.23
Series: UMT-H
3403.0269.23 SCHURTER Micro Fuses

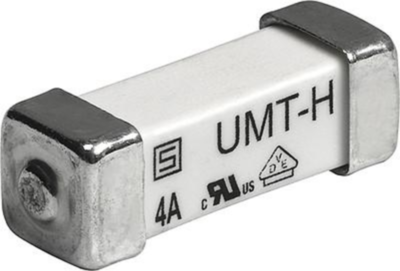

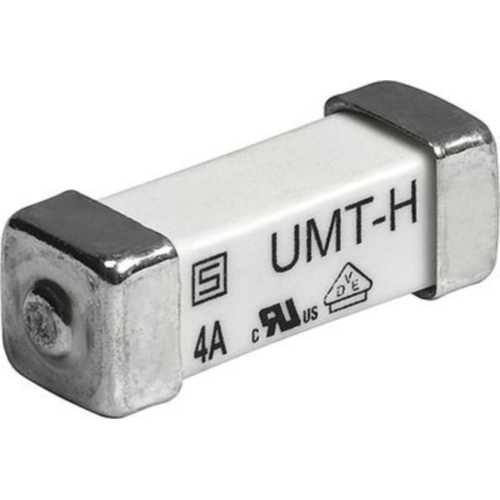

Image may differ
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
3,248.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
1.0829 €

SMD-Fuse, 3403.0269.23, SCHURTER

The 3403.0269.23 is a SMT time-lag fuse that allows a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.

Features

  • Material glass tube
  • Material terminals copper alloy Ni/Sn-plated
  • High rated voltage
  • High breaking capacity up to 1500 A

Applications

  • Primary protection on SMD PCB-s
  • Power supplies
  • Explosion protection
  • Lighting
  • Sensors
  • Battery protection
Technical specifications
Design 5.3 x 16 mm
Version SMD fuse
Enclosure SMD
Rated current 315 mA
Tripping characteristics T
Rated voltage (DC) 250 V
Height 5.35 mm
Length 15.4 mm
Rated voltage (AC) 277 V
Breaking capacity 1.5 kA
Width 5.35 mm
Logistics
Original Packaging Blister with 1,500 pieces
Customs tariff number 85361010
Country of origin CH
MSL MSL 1
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
