3403.0170.11 | SCHURTER

SMD fuse 3 x 10.1 mm, 2.5 A, T, 125 V (DC), 250 V (AC), 200 A breaking capacity, 3403.0170.11

Order No.: 50G609
EAN: 4099889094121
MPN:
3403.0170.11
Series: UMT 250
3403.0170.11 SCHURTER Micro Fuses

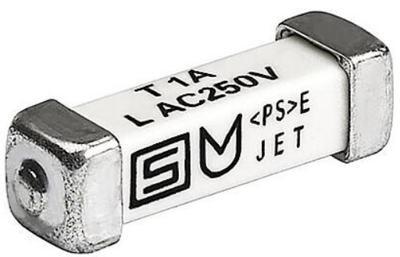

Image may differ
Unit Price (€ / pc.)
0.3689 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
0.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.3689 €

SMD-Fuse, 3403.0170.11,SCHURTER

The 3403.0170.11 is a time-lag surface mount fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.

Features

  • Material ceramic
  • Material terminals copper alloy tin-plated
  • High breaking capacity
  • PCB or SMT mountable

Applications

  • Primary protection on SMD PCBs
  • Medical equipment
  • Battery protection
Technical specifications
Design 3 x 10.1 mm
Version SMD fuse
Enclosure SMD
Rated current 2.5 A
Tripping characteristics T
Rated voltage (DC) 125 V
Height 3 mm
Length 10.1 mm
Rated voltage (AC) 250 V
Breaking capacity 200 A
Width 3 mm
Logistics
Original Packaging Blister with 100 pieces
Customs tariff number 85361010
Country of origin CH
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
