3403.0131.11 | SCHURTER
SMD fuse 11 x 4.6 mm, 3 A, T, 125 V (DC), 250 V (AC), 50 A breaking capacity, 3403.0131.11
Unit Price (€ / pc.)
0.4284 € *
Standard delivery time from the manufacturer is: 6 Weeks

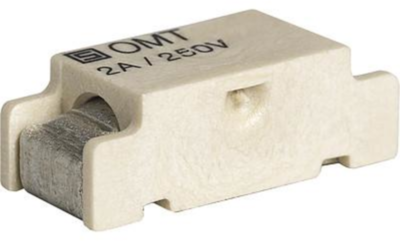

SMD-Fuse, 3403.0131.11, SCHURTER
The 3403.0131.11 is a SMT fuse. It is a time-lag fuse and can be directly solderable on printed circuit boards.
Features
- Material housing thermoplastic
- Material terminals copper alloy, tin-plated
- Suitable for reflow and wave soldering
- Vibration resistant
Applications
- Primary protection on SMD PCB-s
- AC and DC applications
Technical specifications
| Design | 11 x 4.6 mm | |
| Version | SMD fuse | |
| Enclosure | SMD | |
| Rated current | 3 A | |
| Tripping characteristics | T | |
| Rated voltage (DC) | 125 V | |
| Height | 3.9 mm | |
| Length | 11 mm | |
| Rated voltage (AC) | 250 V | |
| Breaking capacity | 50 A | |
| Width | 4.6 mm |
Download
Logistics
| Original Packaging | Reel with 100 pieces |
| Customs tariff number | 85361010 |
| Country of origin | CH |
| MSL | MSL 1 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
