3403.0130.24 | SCHURTER

SMD fuse 11 x 4.6 mm, 1.5 A, T, 125 V (DC), 250 V (AC), 50 A breaking capacity, 3403.0130.24

Order No.: 59P4761
EAN: 4099889108149
MPN:
3403.0130.24
Series: OMT
3403.0130.24 SCHURTER Micro Fuses

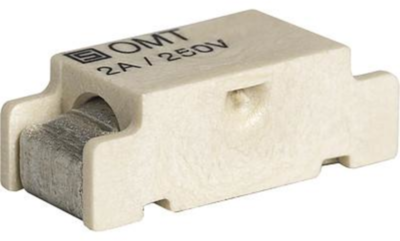

Image may differ
Unit Price (€ / pc.)
0.5355 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2,142.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.5355 €

SMD-Fuse, 3403.0130.24, SCHURTER

The 3403.0130.24 is a SMT fuse. It is a time-lag fuse and can be directly solderable on printed circuit boards.

Features

  • Material housing thermoplastic
  • Material terminals copper alloy, tin-plated
  • Suitable for reflow and wave soldering
  • Vibration resistant

Applications

  • Primary protection on SMD PCB-s
  • AC and DC applications
Technical specifications
Design 11 x 4.6 mm
Version SMD fuse
Enclosure SMD
Rated current 1.5 A
Tripping characteristics T
Rated voltage (DC) 125 V
Height 3.9 mm
Length 11 mm
Rated voltage (AC) 250 V
Breaking capacity 50 A
Width 4.6 mm
Logistics
Original Packaging Reel with 2,000 pieces
Customs tariff number 85361010
Country of origin CH
MSL MSL 1
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
