3403.0011.24 | SCHURTER

SMD fuse 11 x 4.6 mm, 315 mA, F, 250 V (DC), 250 V (AC), 100 A breaking capacity, 3403.0011.24

Order No.: 59P4733
EAN: 4099889107869
MPN:
3403.0011.24
Series: OMF 250

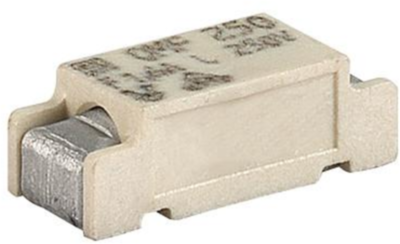

3403.0011.24 SCHURTER Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2,189.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.5474 €

SMD-Fuse, 3403.0011.24, SCHURTER

The 3403.0011.24 is a SMT fuse. It is a quick-acting fuse and can be directly solderable on printed circuit boards.

Features

  • Material housing thermoplastic
  • Material terminals copper alloy, tin-plated
  • Suitable for reflow and wave soldering
  • Vibration resistant

Applications

  • Primary protection on SMD PCB-s
Technical specifications
Design 11 x 4.6 mm
Version SMD fuse
Enclosure SMD
Rated current 315 mA
Tripping characteristics F
Rated voltage (DC) 250 V
Height 3.9 mm
Length 11 mm
Rated voltage (AC) 250 V
Breaking capacity 100 A
Width 4.6 mm
Logistics
Original Packaging Reel with 2,000 pieces
Customs tariff number 85361010
Country of origin CH
MSL MSL 1
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
