3402.0046.24 | SCHURTER

SMD fuse 7.4 x 3.1 mm, 750 mA, F, 63 V (DC), 63 V (AC), 50 A breaking capacity, 3402.0046.24

Order No.: 59P4721
EAN: 4099889107746
MPN:
3402.0046.24
Series: OMF 63

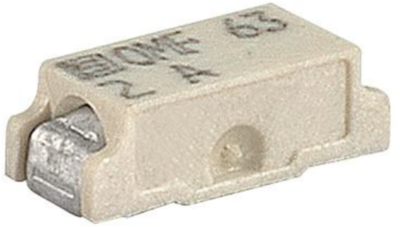

3402.0046.24 SCHURTER Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.4879 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1,463.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.4879 €

SMD-Fuse, 3402.0046.24, SCHURTER

The 3402.0046.24 is a SMT fuse. It is a quick-acting fuse and can be directly solderable on printed circuit boards.

Features

  • Material housing thermoplastic
  • Material terminals copper alloy, tin-plated
  • Suitable for reflow and wave soldering
  • Vibration resistant

Applications

  • PCBs
Technical specifications
Filter Property Value
Tripping characteristics F
Design 7.4 x 3.1 mm
Breaking capacity 50 A
Version SMD fuse
Rated voltage (AC) 63 V
Height 2.6 mm
Rated current 750 mA
Width 3.1 mm
Length 7.4 mm
Enclosure SMD
Rated voltage (DC) 63 V
Logistics
Property Value
Country of origin CH
Customs tariff number 85361010
MSL MSL 1
Original Packaging Reel with 3,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
