3-139-131 | SCHURTER

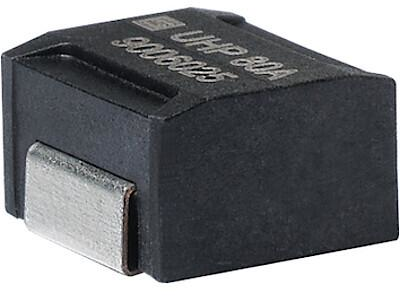

SMD fuse 11.4 x 10.2 mm, 90 A, F, 80 V (DC), 3 kA breaking capacity, 3-139-131
Unit Price (€ / pc.)
5.9381 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
5.94 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9381 €
10 pcs.
5.3312 €
50 pcs.
4.9028 €
100 pcs.
4.4149 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD fuse, 3-139-131, SCHURTER
This fuse was specially developed for SELV applications with high rated currents for highest breaking capacity demands. Thanks to its design, the fuses tripping time minimizes excessive temperature dissipation at 2x rated current.
Features
- Safe tripping in 15 s at twice the rated current
- High range of operating temperature
Applications
- Automotive
- Datacenter appliances
- Telecom equipment
- Power tools
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Design | 11.4 x 10.2 mm | |
| Breaking capacity | 3 kA | |
| Version | SMD fuse | |
| Height | 6.77 mm | |
| Rated current | 90 A | |
| Width | 10.2 mm | |
| Length | 11.4 mm | |
| Enclosure | SMD | |
| Rated voltage (DC) | 80 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85361090 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
