3-139-128 | SCHURTER

SMD fuse 11.4 x 10.2 mm, 80 A, F, 80 V (DC), 3 kA breaking capacity, 3-139-128

Order No.: 42G1206
EAN: 4099891556334
MPN:
3-139-128
UHP 80A
Series: UHP

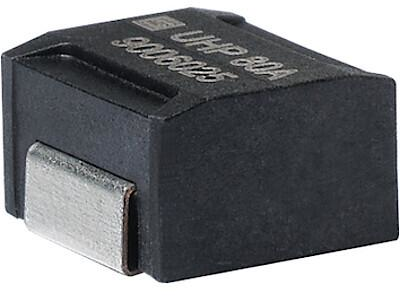

3-139-128 SCHURTER Micro Fuses
Image may differ
Unit Price (€ / pc.)
2.9155 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1,457.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
2.9155 €

SMD fuse, 3-139-128, SCHURTER

This fuse was specially developed for SELV applications with high rated currents for highest breaking capacity demands. Thanks to its design, the fuses tripping time minimizes excessive temperature dissipation at 2x rated current.

Features

  • Safe tripping in 15 s at twice the rated current
  • High range of operating temperature

Applications

  • Automotive
  • Datacenter appliances
  • Telecom equipment
  • Power tools
Technical specifications
Design 11.4 x 10.2 mm
Version SMD fuse
Enclosure SMD
Rated current 80 A
Tripping characteristics F
Rated voltage (DC) 80 V
Height 6.77 mm
Length 11.4 mm
Breaking capacity 3 kA
Width 10.2 mm
Logistics
Original Packaging Bag with 100 pieces
Customs tariff number 85361090
Country of origin CH
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
