3-139-124 | SCHURTER

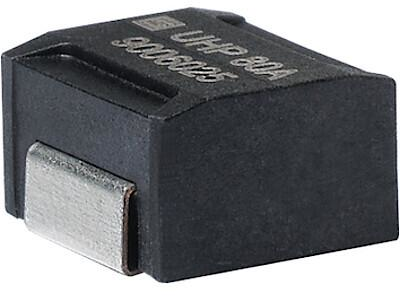

SMD fuse 11.4 x 10.2 mm, 60 A, F, 80 V (DC), 3 kA breaking capacity, 3-139-124
Unit Price (€ / pc.)
2.9155 € *
Standard delivery time from the manufacturer is: 10 Weeks
SMD fuse, 3-139-124, SCHURTER
This fuse was specially developed for SELV applications with high rated currents for highest breaking capacity demands. Thanks to its design, the fuses tripping time minimizes excessive temperature dissipation at 2x rated current.
Features
- Safe tripping in 15 s at twice the rated current
- High range of operating temperature
Applications
- Automotive
- Datacenter appliances
- Telecom equipment
- Power tools
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 11.4 mm | |
| Height | 6.77 mm | |
| Version | SMD fuse | |
| Breaking capacity | 3 kA | |
| Rated voltage (DC) | 80 V | |
| Enclosure | SMD | |
| Width | 10.2 mm | |
| Tripping characteristics | F | |
| Rated current | 60 A | |
| Design | 11.4 x 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Country of origin | CH |
| Customs tariff number | 85361050 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
