0034.5716.11 | SCHURTER

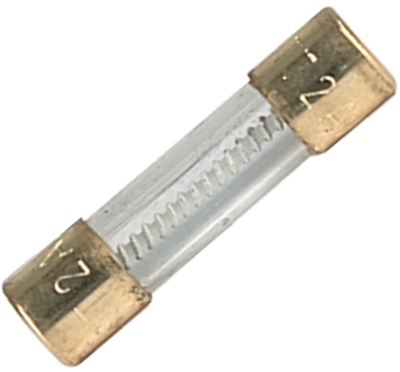

Microfuse 5 x 20 mm, 2 A, TT, 250 V (AC), 35 A breaking capacity, 0034.5716.11
Not suitable for new designs - Last time buy manufacturer: 03.30.2025
Unit Price (€ / pc.)
0.9044 € *
Available: 240 pcs.
Total Price:
0.90 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9044 €
10 pcs.
0.8330 €
50 pcs.
0.7616 €
100 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
Micro fuse, 0034.5716.11,SCHURTER
The 0034.5716.11 is a super time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material glass tube
- Material endcaps copper alloy gold-plated
- Low breaking capacity
- PCB or SMT mountable
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| Design | 5 x 20 mm | |
| Version | microfuse | |
| Rated voltage (AC) | 250 V | |
| Enclosure | glass tube | |
| Tripping characteristics | TT | |
| diameter | 5.1 mm | |
| Breaking capacity | 35 A | |
| Length | 20 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Blister with 100 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
