0034.3781 | SCHURTER

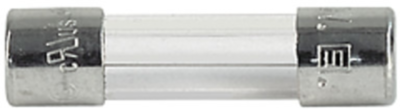

Microfuse 5 x 20 mm, 3 A, T, 250 V (AC), 10 kA breaking capacity, 0034.3781
Not suitable for new designs - Last time buy manufacturer: 03.30.2025
Unit Price (€ / pc.)
0.5355 € *
Available: 439 pcs.
Total Price:
0.54 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5355 €
10 pcs.
0.4879 €
50 pcs.
0.4403 €
100 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale
Micro fuse, 0034.3781, SCHURTER
The 0034.3781 is a time-lag cartridge fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material glass tube
- Material endcaps copper alloy nickel-plated
- Suitable for mounting in fuseholder / clip
- High breaking capacity up to 1500 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 10 kA | |
| diameter | 5.2 mm | |
| Version | microfuse | |
| Rated current | 3 A | |
| Tripping characteristics | T | |
| Enclosure | glass tube | |
| Length | 20 mm | |
| Design | 5 x 20 mm | |
| Rated voltage (AC) | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| MSL | MSL 1 |
| Customs tariff number | 85361010 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
