0034.3127.G | SCHURTER

Name: Microfuses 5 x 20 mm, 10 A, T, 250 V (AC), 100 A breaking capacity, 0034.3127.G
Brand: SCHURTER
SKU: 59P1505
Price: 0.15 EUR
Availability: OutOfStock

Microfuses 5 x 20 mm, 10 A, T, 250 V (AC), 100 A breaking capacity, 0034.3127.G

Order No.: 59P1505

EAN: 4099889103052

MPN:

0034.3127.G

Series: FST 5x20

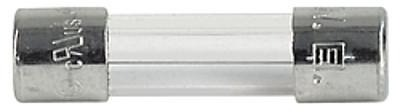

Image may differ

Key Specification:

Version microfuses

Design 5 x 20 mm

Enclosure glass tube

Rated current 10 A

Tripping characteristics T

Show 23 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1511 € *

Available: 0 pcs.

Leadtime: 20 Weeks **

Add to Cart

Total Price:

0.15 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Miniature fuse, 0034.3127.G, Schurter

Miniature Fuse, 5 x 20 mm, Time-Lag T, L, 250 VAC

Features

IEC Standard Fuse
L = Low Breaking Capacity (Glass Tube)

Applications

Primary Protection in Equipment

Technical specifications

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	IN
Customs tariff number	85361050
MSL	MSL 1
Original Packaging	Carton with 1,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 23 variations
