0034.3109 | SCHURTER

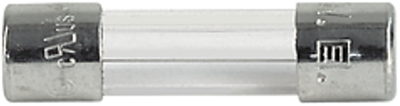

Microfuse 5 x 20 mm, 160 mA, T, 250 V (AC), 35 A breaking capacity, 0034.3109
Unit Price (€ / pc.)
0.2785 € *
Standard delivery time from the manufacturer is: 7 Weeks
Micro fuse, 0034.3109, SCHURTER
The 0034.3109 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material tube glass
- Material endcaps copper alloy nickel-plated
- Time-lag
- Low breaking capacity
Applications
- Primary protection in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | T | |
| Design | 5 x 20 mm | |
| Breaking capacity | 35 A | |
| Version | microfuse | |
| Rated voltage (AC) | 250 V | |
| Rated current | 160 mA | |
| Length | 20 mm | |
| diameter | 5.2 mm | |
| Enclosure | glass tube |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85361010 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
