0034.3108.G | SCHURTER
Microfuse 5 x 20 mm, 125 mA, T, 250 V (AC), 35 A breaking capacity, 0034.3108.G
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
0.58 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5831 €
10 pcs.
0.5236 €
50 pcs.
0.4760 €
100 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale

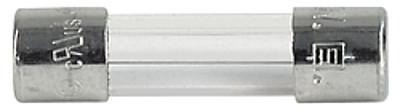

Miniature fuse, 0034.3108.G, Schurter
Miniature Fuse, 5 x 20 mm, Time-Lag T, L, 250 VAC
Features
- IEC Standard Fuse
- L = Low Breaking Capacity (Glass Tube)
Applications
- Primary Protection in Equipment
Technical specifications
| Enclosure | glass tube | |
| Rated current | 125 mA | |
| diameter | 5.2 mm | |
| Tripping characteristics | T | |
| Length | 20 mm | |
| Breaking capacity | 35 A | |
| Rated voltage (AC) | 250 V | |
| Version | microfuse | |
| Design | 5 x 20 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
