0034.1516.G | SCHURTER
Microfuse 5 x 20 mm, 1 A, F, 250 V (AC), 35 A breaking capacity, 0034.1516.G
Unit Price (€ / pc.)
0.2356 € *
Available: 1,855 pcs.
Total Price:
1.18 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2356 €
10 pcs.
0.2071 €
50 pcs.
0.1773 €
100 pcs.
0.1452 €
*incl. VAT plus shipping costs
Subject to prior sale

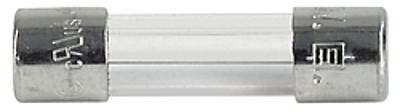

Micro fuse, 0034.1516.G, SCHURTER
The 0034.1516.G is a quick-acting miniature fuse and it is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Construction is with cylindrical glass tube
- Contact caps copper alloy nickel-plated
Applications
- Primary protection in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 250 V | |
| diameter | 5.2 mm | |
| Length | 20 mm | |
| Rated current | 1 A | |
| Tripping characteristics | F | |
| Design | 5 x 20 mm | |
| Breaking capacity | 35 A | |
| Version | microfuse | |
| Enclosure | glass tube |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 1,000 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
