0001.2516.G | SCHURTER
Microfuse 5 x 20 mm, 16 A, T, 125 V (DC), 250 V (AC), 500 A breaking capacity, 0001.2516.G
Unit Price (€ / pc.)
0.5355 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
0.54 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5355 €
10 pcs.
0.4760 €
50 pcs.
0.4284 €
100 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale

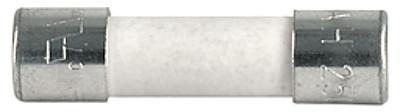

Miniature fuse, 0001.2516.G, Schurter
Miniature Fuse, 5 x 20 mm, Time-Lag T, H, 250 VAC, UL: 115 V - 300 VDC
Applications
- Primary Protection in Equipment
- Power Supply Adapter for e.g. laptops
- SMPS (Switching Mode Power Supply) for TV's and DVD's
Technical specifications
| Rated voltage (DC) | 125 V | |
| Enclosure | ceramic tube | |
| Rated current | 16 A | |
| diameter | 5.2 mm | |
| Tripping characteristics | T | |
| Length | 20 mm | |
| Breaking capacity | 500 A | |
| Rated voltage (AC) | 250 V | |
| Version | microfuse | |
| Design | 5 x 20 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85361050 |
| MSL | MSL 1 |
| Original Packaging | Carton with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
