0001.1012.G | SCHURTER
Microfuse 5 x 20 mm, 6.3 A, F, 250 V (AC), 1.5 kA breaking capacity, 0001.1012.G
Unit Price (€ / pc.)
0.1725 € *
Standard delivery time from the manufacturer is: 7 Weeks

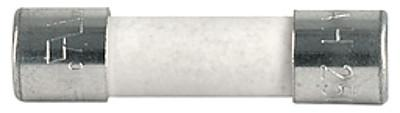

Micro fuse, 0001.1012.G, SCHURTER
The 0001.1012.G is a quick-acting miniature fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material tube ceramic
- Material endcaps copper alloy nickel-plated
- Quick-acting
- Cartridge model
Applications
- Primary protection in equipment
Technical specifications
| Enclosure | ceramic tube | |
| Rated current | 6.3 A | |
| diameter | 5.2 mm | |
| Tripping characteristics | F | |
| Length | 20 mm | |
| Breaking capacity | 1.5 kA | |
| Rated voltage (AC) | 250 V | |
| Version | microfuse | |
| Design | 5 x 20 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
