FMCC-I93F-S654 | SCHURTER
3-stage filter, 50 to 60 Hz, 1.6 kA, 520 VAC, 1320 kW, bus bar, FMCC-I93F-S654
Unit Price (€ / pc.)
2,542.7801 € *
Standard delivery time from the manufacturer is: 20 Weeks

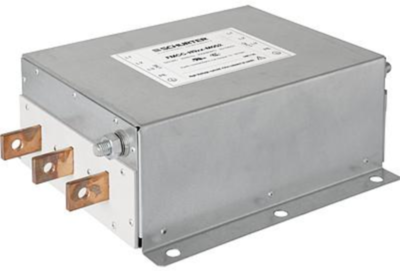

3-Phase AC/DC filter, FMCC-I93F-S654, SCHURTER
The FMCC-I93F-S654 is a 3-phase high current filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- High power filter
- Especially designed for high power application
Applications
- Frequency converters
- UPS-system
- Inverters for photovoltaic system
- Wind energy
- Suitable for use in equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Connection | bus bar | |
| Rated Voltage | 520 VAC | |
| Power | 1320 kW | |
| Number of phases | 3 | |
| With fuse | No | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Version | 3-stage filter | |
| max. frequency | 60 Hz | |
| min. frequency | 50 Hz | |
| Rated current | 1.6 kA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | CH |
| MSL | MSL 1 |
| Original Packaging | Carton with 1 piece |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
