FMAD-T4QT-3260.EU | SCHURTER

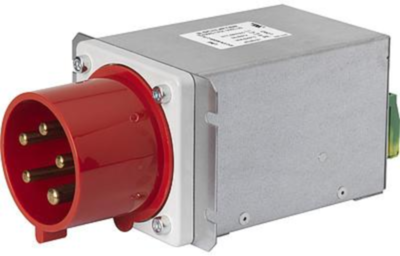

1-stage filter, 50 to 60 Hz, 32 A, 415 VAC, screw connection, FMAD-T4QT-3260.EU

Order No.: 59P9202

EAN: 4099889074017

MPN:

FMAD-T4QT-3260.EU

Image may differ

Key Specification:

Version 1-stage filter

min. frequency 50 Hz

max. frequency 60 Hz

Rated current 32 A

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

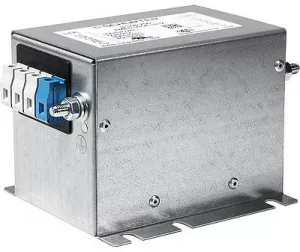

1-stage filter, 50 to 60 Hz, 36 A, 300/520 VAC, screw connection, 3-108-712

Order No.: 75D0129

Manufacturer: SCHURTER

per pc. 134.8032 € *

Go to product

*plus VAT and shipping costs

Description

3-Phase AC/DC filter, FMAD-T4QT-3260.EU, SCHURTER

The FMAD-T4QT-3260.EU is a 1-stage filter for 3-phase system with neutral conductor. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

First CEE power entry module with EMC filter
Easy prewired solution
Universal flange for front or rear mounting
Optimal filter position direct on the power entry

Applications

Protection against interference voltage from the mains
Possible interferences generated in the equipment are strongly attenuated
Suitable for equipment with detachable power cord

Technical specifications

	max. frequency	60 Hz
	Number of phases	3
	integrated switch	No
	Rated current	32 A
	With fuse	No
	Version	1-stage filter
	min. operating temperature	-40 °C
	Connection	screw connection
	Rated Voltage	415 VAC
	max. operating temperature	85 °C
	min. frequency	50 Hz
