CDG4.4101.151 | SCHURTER
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 10 mH, faston plug 4.8 mm, CDG4.4101.151
Unit Price (€ / pc.)
36.4140 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
36.41 € *
Price list
Quantity
Price per unit*
1 pcs.
36.4140 €
5 pcs.
34.2244 €
10 pcs.
31.8325 €
25 pcs.
29.2859 €
*incl. VAT plus shipping costs
Subject to prior sale

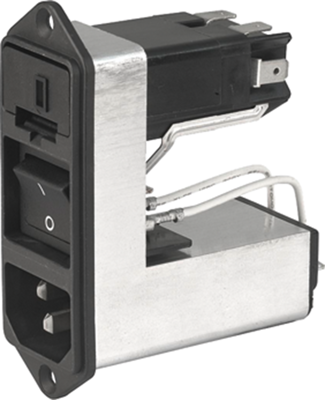

EMC filters with add-on function combination series CD, type Schurter CD.
Consists of the filter, an IEC appliance connector with protection class 1, a touch-proof G fuse holder 5.0 x 20 mm or US-type fuse holder 6.3 x 32 mm, with or without voltage selector. Double-pole power On/Off switch without illumination. Vertical activation; Color: black. Rated voltage: 250 VAC/50-60 Hz. Capacitance: 0.068 µF (X), 2200 pF (Y). Connections: 4.8 mm tab terminals. Certifications: ENEC 10, VDE, UL.
For medical power supply systems, type CDG.
Capacitance: 0.068 µF (X). Resistance: 1.0 Mohm.
Technical attributes (type, rated current, rated inductance): CDG4.4101.151, 1.0 A, 2 x 10 mH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 1 MΩ | |
| Inductance per line | 10 mH | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz | |
| max. frequency | 60 Hz | |
| Connection | faston plug 4.8 mm | |
| Number of phases | 1 | |
| With fuse | Yes | |
| Rated current | 1 A | |
| Rated Voltage | 250 VAC | |
| Capacity X|Y | X2 68 nF | |
| min. operating temperature | -25 °C | |
| integrated switch | Yes | |
| Version | IEC plug C14 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
