C20F.0001 | SCHURTER

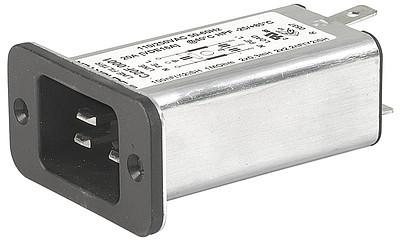

IEC plug C20, 50 to 60 Hz, 16 A, 250 VAC, 300 µH, solder connection, C20F.0001
Unit Price (€ / pc.)
31.5945 € *
Available: 25 pcs.
Total Price:
31.59 € *
Price list
Quantity
Price per unit*
1 pcs.
31.5945 €
5 pcs.
29.7024 €
20 pcs.
28.1792 €
40 pcs.
27.4176 €
160 pcs.
25.9182 €
*incl. VAT plus shipping costs
Subject to prior sale
Suppressor filter, C20F.0001, SCHURTER
Features
- Compact design with optimal shielding Suitable for assembly in metal plated plastic housings
- Version with class X1 and X2 (standard version) capacitors
- Universal line filter for standard applications
- Suitable for use in equipment according to IEC/UL 60950
- Suitable for use in medical equipment according to IEC/UL 60601-1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 1 MΩ | |
| Inductance per line | 300 µH | |
| Connection | solder connection | |
| With fuse | No | |
| min. frequency | 50 Hz | |
| max. frequency | 60 Hz | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 85 °C | |
| Capacity X|Y | X2 100 nF, Y 2.2 nF | |
| min. operating temperature | -25 °C | |
| Version | IEC plug C20 | |
| integrated switch | No | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 20 pieces |
| Country of origin | CH |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
