5707.0801.313.01 | SCHURTER
IEC plug C14, 50 to 60 Hz, 8 A, 250 VAC, faston plug 6.3 mm, 5707.0801.313.01
Unit Price (€ / pc.)
35.4977 € *
Available: 5 pcs.
Total Price:
35.50 € *
Price list
Quantity
Price per unit*
1 pcs.
35.4977 €
5 pcs.
33.3676 €
10 pcs.
31.0233 €
25 pcs.
28.5481 €
*incl. VAT plus shipping costs
Subject to prior sale

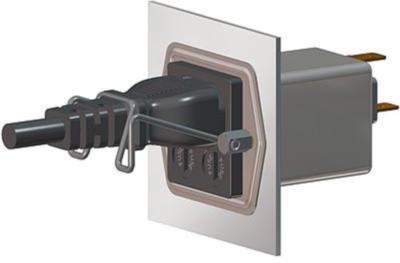

IEC appliance inlet, 5707.0801.313.01, SCHURTER
The 5707.0801.313.01 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Sealed power entry module
- Strong in Design and Safety
- Screw type fuse carrier, slotted
- With EMC-shield
- Suitable for use in medical equipment
- IP 65 protection to the appliance
- IP 54 protection to the cord connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | IEC plug C14 | |
| Rated Voltage | 250 VAC | |
| min. operating temperature | -25 °C | |
| Rated current | 8 A | |
| With fuse | Yes | |
| integrated switch | No | |
| Connection | faston plug 6.3 mm | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz | |
| ohmic resistance | 1 MΩ | |
| max. frequency | 60 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | CZ |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
