5707.0601.113 | SCHURTER

IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, faston plug 6.3 mm, 5707.0601.113

Order No.: 58P7744
EAN: 4099891515324
MPN:
5707.0601.113
Series: 5707

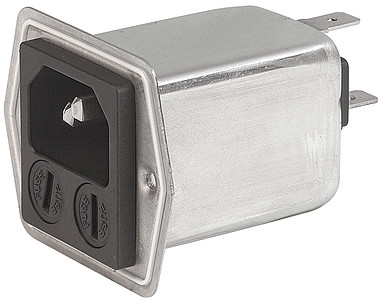

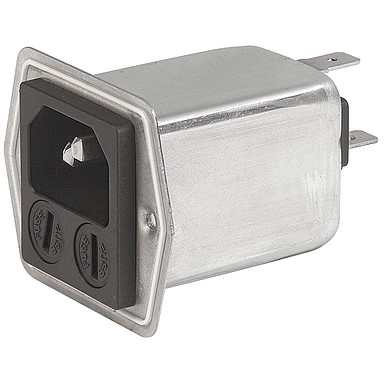

5707.0601.113 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
29.4049 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
29.40 € *
Price list
Quantity
Price per unit*
1 pcs.
29.4049 €
10 pcs.
27.3462 €
25 pcs.
25.4303 €
50 pcs.
23.3954 €
*incl. VAT plus shipping costs
Subject to prior sale

IEC Appliance inlet with filter, 5707.0601.113, Schurter

IEC Appliance Inlet with Filter, Protection Degree IP65 into the Appliance, Fuseholder 1-pole, Rear Mounting.

Features

  • Extreme robust design
  • Screw type fuse carrier, slotted
  • With EMC-shield
Technical specifications
max. frequency 60 Hz
integrated switch No
Rated current 6 A
Capacity X|Y X 100 nF, Y 2.2 nF
With fuse Yes
Version IEC plug C14
min. operating temperature -25 °C
Connection faston plug 6.3 mm
Rated Voltage 250 VAC
max. operating temperature 85 °C
min. frequency 50 Hz
ohmic resistance 1 MΩ
Logistics
Country of origin CZ
Customs tariff number 85363010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
