5500.2652.01 | SCHURTER
AC filter, 50 to 60 Hz, 6 A, 250 VAC, faston plug 6.3 mm, 5500.2652.01
Unit Price (€ / pc.)
11.0551 € *
Available: 0 pcs.
Leadtime: 22 Weeks **

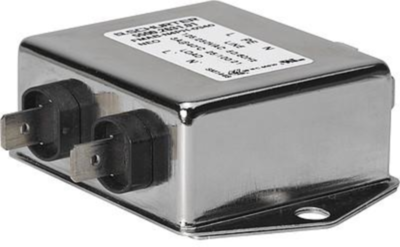

1-Phase line filter, 5500.2652.01, SCHURTER
The 5500.2652.01 is an AC filter, high symmetrical attenuation. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- 3 Filter designs for various applications
- Completely closed steel housing
- Wide temperature range
- Protection against interference voltage from the mains
- Suitable for use in equipment
Technical specifications
| max. frequency | 60 Hz | |
| Number of phases | 1 | |
| integrated switch | No | |
| Rated current | 6 A | |
| With fuse | No | |
| Version | AC filter | |
| min. operating temperature | -40 °C | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| ohmic resistance | 12 mΩ |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
