5500.2362 | SCHURTER

1-stage filter, 50 to 60 Hz, 32 A, 125/250 VAC, screw connection, 5500.2362

Order No.: 59P7365

EAN: 4099889070170

MPN:

5500.2362

Image may differ

Key Specification:

Version 1-stage filter

min. frequency 50 Hz

max. frequency 60 Hz

Rated current 32 A

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

AC filter, 50 to 60 Hz, 30 A, 250 VAC, threaded bolt, 5500.2639.03

Order No.: 59P7431

Manufacturer: SCHURTER

per pc. 41.5429 € *

Go to product

*plus VAT and shipping costs

Description

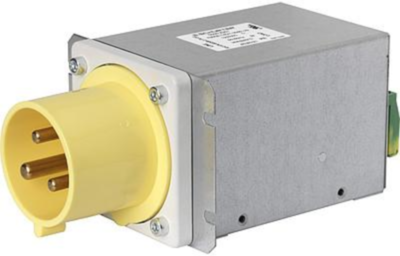

1-Phase line filter, 5500.2362, SCHURTER

The 5500.2362 is a 1-stage filter with 1-phase CEE connector. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

First CEE power entry module with filter
Easy prewired solution
Universal flange for front or rear mounting
Optimal filter position direct on the power entry
Protection against interference voltage from the mains
Suitable for equipment with detachable power cord

Technical specifications

	max. frequency	60 Hz
	Number of phases	1
	integrated switch	No
	Rated current	32 A
	With fuse	No
	Version	1-stage filter
	min. operating temperature	-40 °C
	Connection	screw connection
	Rated Voltage	125/250 VAC
	max. operating temperature	85 °C
	min. frequency	50 Hz
